Technical Specifications
Attachment type | Iron On |
Daytime color | Grey/Silver |
Composition | PET film and hot melt adhesive |
Thickness(µm) | 200-300 |
Reflection(cd/(lux/m²) | 260+ ~ 420+ |
Home Wash Cycles | >15 |
Width | Any width from 1cm to 140cm |

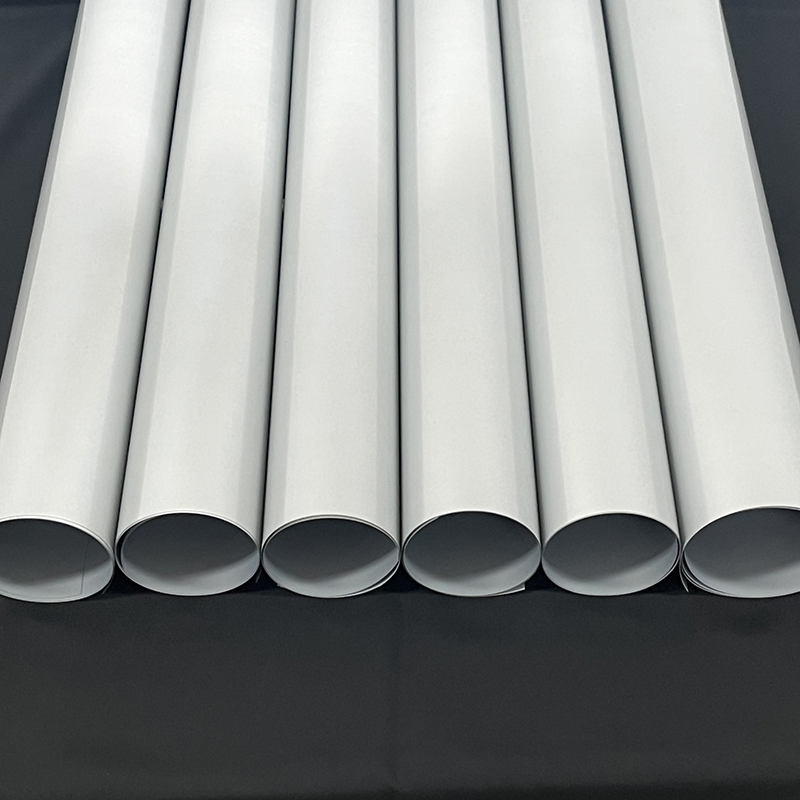

Packing | 50m/roll, 100m/roll, or customized |
Application | It is suitable for using a computer or laser to carve a variety of fonts or patterns, and then heat them on all kinds of substrate. |
Details
· 1. Composed of wide-angle exposed micro-glass beads bonded to a heat-activated adhesive.
· 2. Feature: Thicker PET protective liner for reflective side, easier to cut by plotter or laser machine into graphics, characters, and logos.
· 3. Packing: 50m/roll, 100m/roll, or customized according to customer requirements.
· 4. It can be applied to many non-stretchable fabrics. Ideal for a range of applications, including safety gear, sports apparel, fashion accessories, and more.
· 5. Can be easily applied with a heat press or iron, and can withstand repeated washing and drying without losing its reflective properties.
HOW TO USE REFLECTIVE HEAT TRANSFER VINYL
To apply reflective HTV onto fabric, follow these steps:
· 1. Cut the vinyl into desired strips or logos.
· 2. Weed out the excess vinyl film to leave only the intended design on the carrier film.
· 3. Place the carrier film with the design facing down onto the fabric.
· 4. Apply heat and pressure at the recommended temperature for a specific duration of time.
· 5. Once the heat transfer process is complete, allow the material to cool down.
· 6. Peel off the PET liner from the carrier film to reveal the reflective design on the fabric.
